FLEXMAG 4050

Electromagnetic flowmeter for single use biopharmaceutical applications

  • With gamma sterilisable disposable flow tube
  • One transmitter accommodates two flow tube diameters
  • Wetted material compliant with ISO 10993 and USP Class VI
  • High accuracy (±1% of MV), wide measuring range, no recalibration

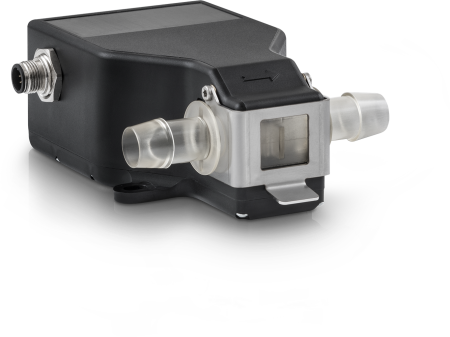

FLEXMAG 4050 Electromagnetic flowmeter

FLEXMAG 4050 Electromagnetic flowmeter

The FLEXMAG 4050 is the first electromagnetic flowmeter that features a disposable flow tube designed specifically for single use biopharmaceutical applications such as filtration processes, chromatography, or buffer and media preparation. The biocompatible and gamma sterilizable flow tube is produced in a sterile facility and features a single barb fitting that meets biopharmaceutical requirements for adaptation to single use systems.

As an electromagnetic meter, the FLEXMAG 4050 will not drift over time. It provides a completely stable, direct and accurate volumetric flow measurement unaffected by fluid properties such as colour or density. The FLEXMAG 4050 provides highly accurate measurement with outstanding repeatability. Transmitter and flow tube are factory calibrated and do not require in-situ calibration. The meter can accommodate two different flow tubes sizes so as to handle two different flow ranges by simply exchanging the tube without having to recalibrate.

Product highlights

  • Disposable flow tube (packed in double sealed individual pouches)
  • One transmitter fits 2 flow tubes diameters:
    • 38" ID: 0.07…14 l/min
    • 12" ID: 0.1…20 l/min
    • Or:
    • 34" ID: 0.3…62 l/min
    • 1" ID: 0,5…75 l/min
    • (extended measuring ranges on request)
  • Accuracy: ±1% of measured value, +1 mm/s
  • Full bore design, low pressure loss
  • Pulse and current output
  • Factory calibrated, no recalibration needed
  • No maintenance required
  • Wetted parts materials made from biocompatible material (FDA, USP VI / BSE/TSE)
  • Manufactured in an ISO 13485 certified site; production in ISO 7 clean room environment
  • Flow tube Gamma sterilizable up to 50 kGy

Typical applications

Life sciences, biopharmaceutical industry

  • In-line flow measurement in:
    • Normal filtration
    • Tangential flow filtration
    • Chromatography
    • Buffer, media preparation
